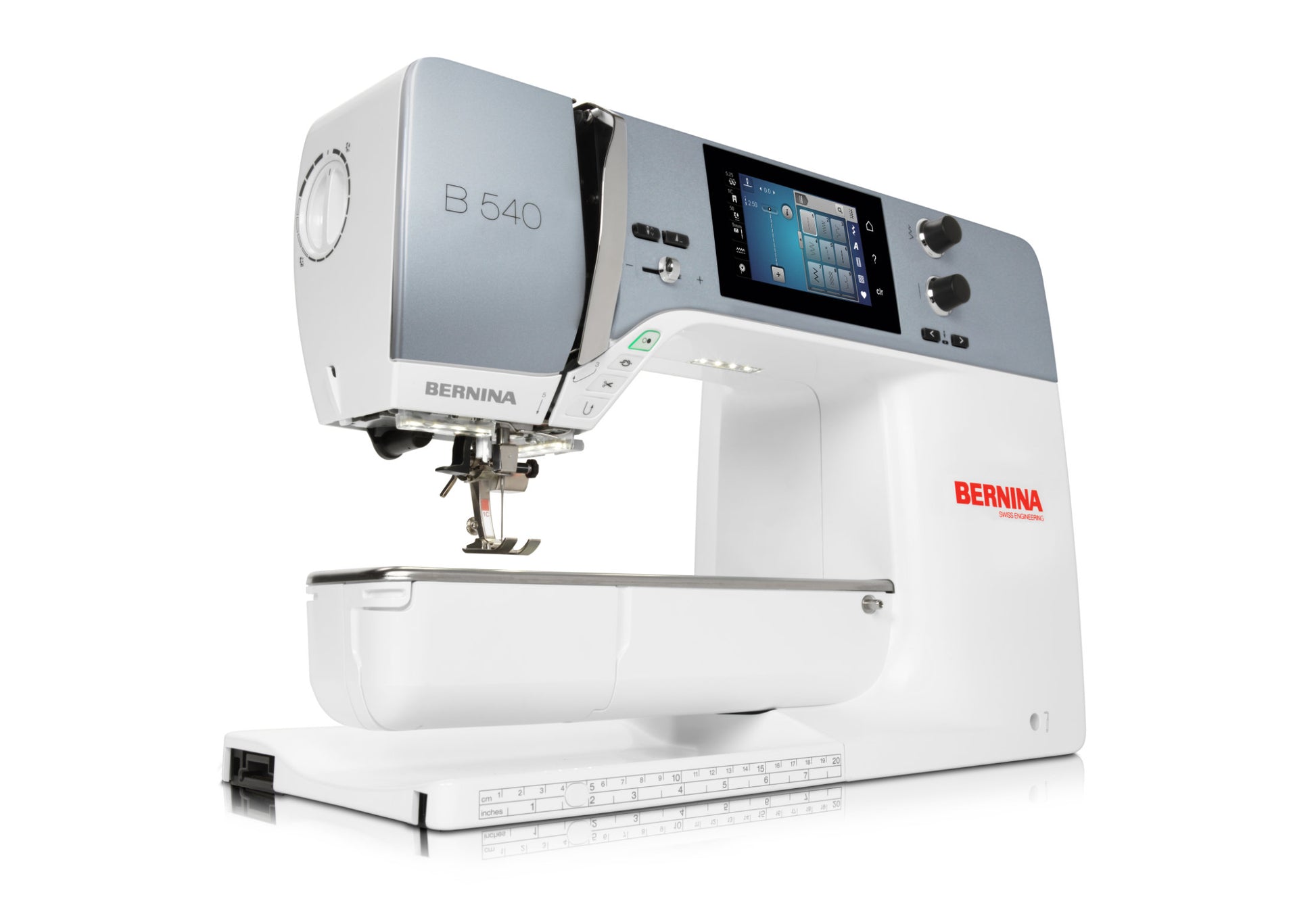

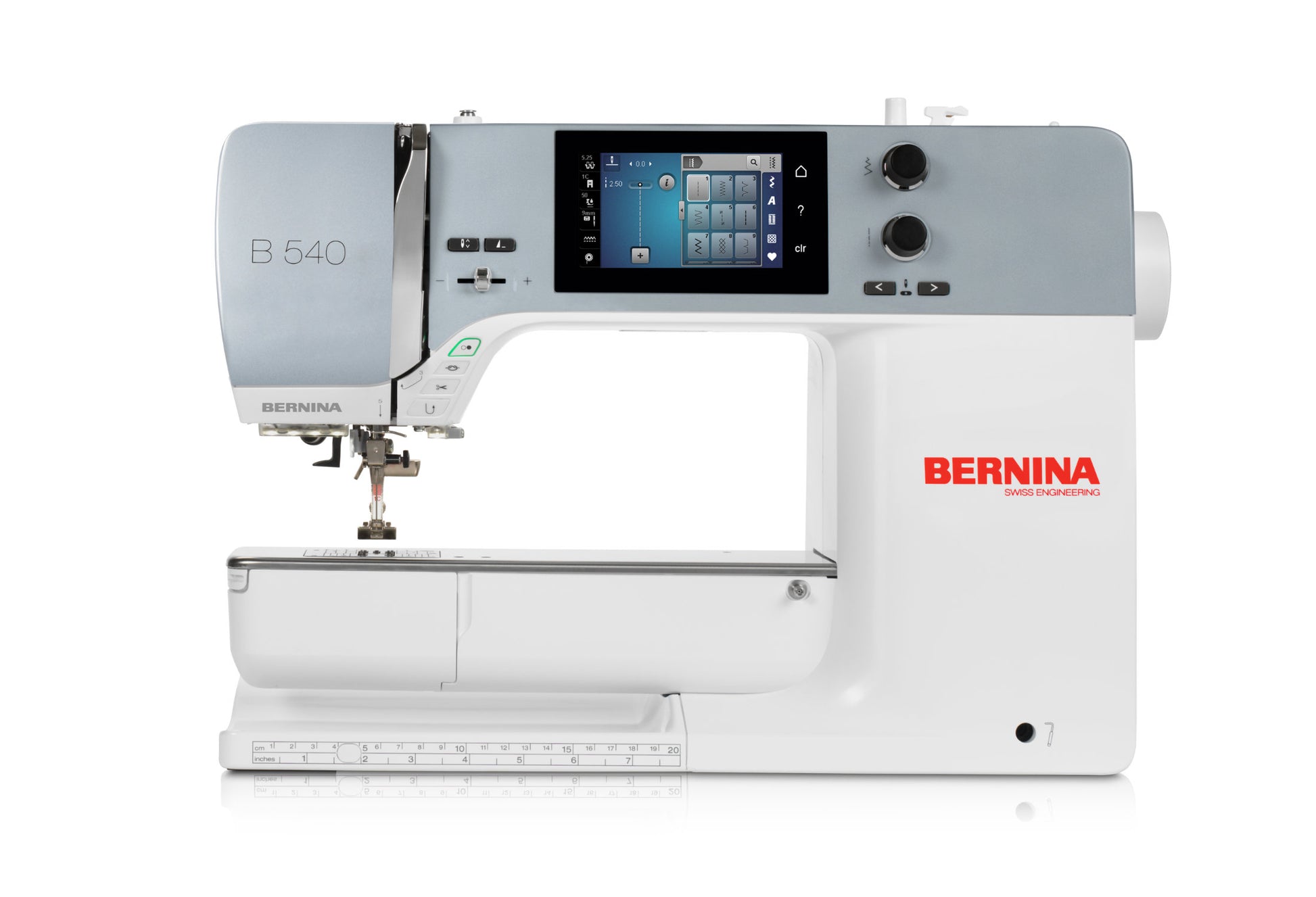

Bernina 540

Bernina 540

Regular price $3,999.00 USD
Regular price Sale price $3,999.00 USD
Sale Sold out

Powerful, fast and presice sewing makes big projects easy! Perfect for decrotive stitches, and embroidery compatible (Machine does NOT come with embroidery module)

  • Powerful, fast & precise sewing
  • Handle big projects with ease
  • Perfect for decorative stitches
  • Your threads are cut automatically
  • Embroidery compatible

General Features

Hook system BERNINA Hook
Maximum sewing speed (stitches per minute) 1000
Length of freearm to the right of the needle 215 mm
Color touchscreen 4.3” / 10 cm
Drag & Drop
LED sewing lights 12 LED
Multi-function knobs
Needle positions 11
Sewing in each needle position
Number of spool holders 2
Semi-automatic needle threader
Adjustable presser foot pressure
Manual thread cutter 4
Automatic thread cutter
Adaptive Thread Tension
Upper thread indicator
BSR functionality, straight stitch and zigzag
BERNINA foot control with back-kick function
Create and save stitch combinations
Memory (short-term/altered stitches)
Memory (long-term/altered stitches)
Start/stop button (stitching without foot control)
Slide speed control
Bobbin winding while sewing/embroidering
USB interface for PC connection
USB interface for USB data stick
Changing stitch settings while sewing
Needle stop up/down
On-screen help
Creative consultant
Sewing tutorial
Setup program


Sewing & Quilting

Pattern start/end function
Stitch length maximum in mm 6
Maximum stitch width 9
Security function program
Pattern mirroring
Free Hand System (FHS)
Number of stitch patterns (incl. alphabet) total 1048
Utility stitches total 30
Buttonholes (incl. eyelet) total 14
Automatic buttonhole length measuring system
Automatic buttonhole
Manual multi-step buttonhole
Button sew-on program
Darning programs
Decorative stitches total 300
Quilting stitches total 44
Cross-stitch programs 31
Sewing alphabets 5
Reverse sewing



Hook system BERNINA Hook
Length of freearm to the right of the needle 215 mm
Color touchscreen 4.3” / 10 cm
Adjustable presser foot pressure
Start/stop button (stitching without foot control)
Maximum stitch width 9
Embroidery Module opt.
Maximum Embroidery Area 400×150 mm
Freearm Embroidery
On-screen Editing of Designs
